Freebird 3D is a three-dimensional open-channel flow model based on Nays3dV, introduced in iRIC V4. Its non-hydrostatic model can reproduce vortex structures within hydraulic jumps, and it is particularly suited to density-current simulations such as saltwater wedges and thermal stratification. Stabilization and acceleration of the calculations using contravariant physical components provide practical computation speeds.
The online manual covers the simulation workflow, all calculation and boundary conditions, and the visualization of results. It is updated as the solver evolves.
The following detailed sections are currently available in Japanese:
ThickWallBlock3D) and contours of cell bed elevation, water level, and riverbed elevation change to the three-dimensional view.SecondaryFlow), water-surface vertical velocity, and vorticity outputs.Explore the vertical velocity distribution using color-coded vectors for the surface (red), middle (blue), and near-bed (green) layers. Visualize three-dimensional flow over bed depressions and complex riverbed topography.

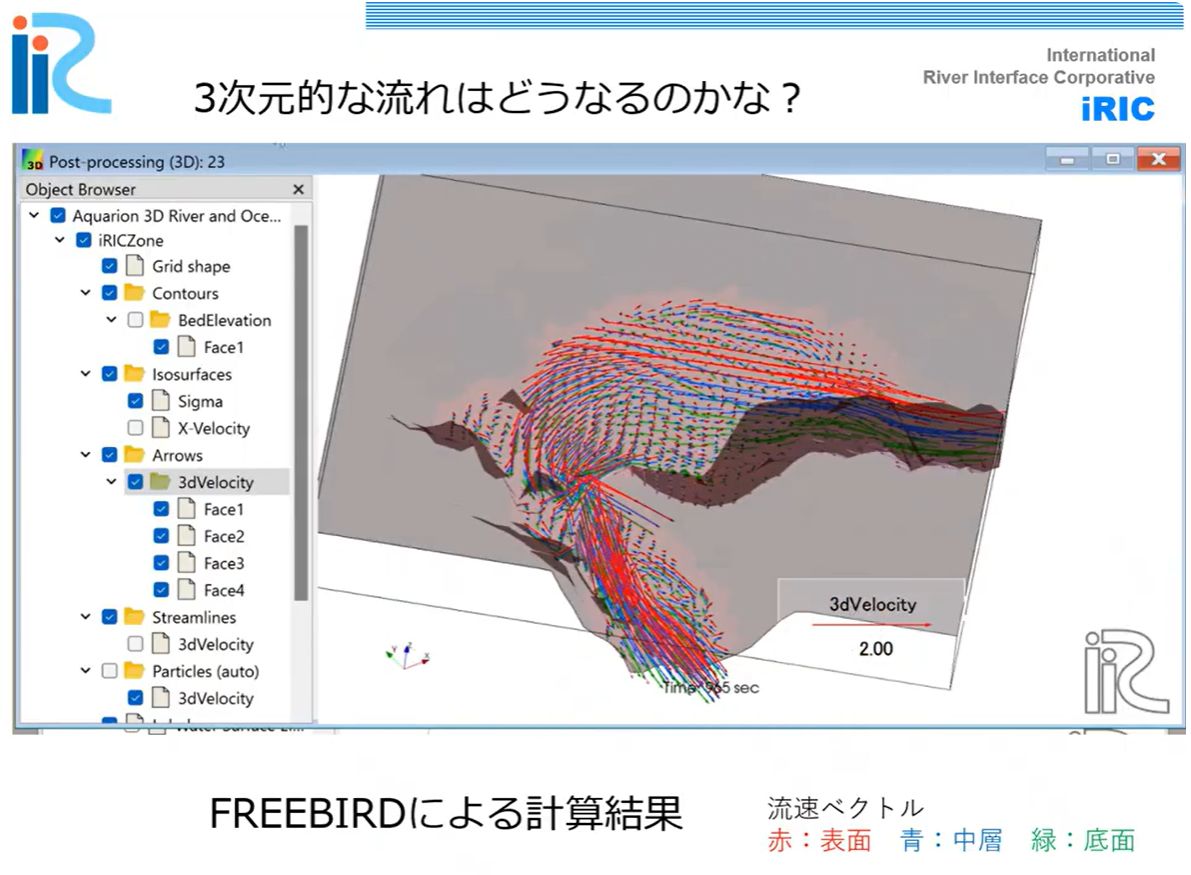

Three-dimensional velocity vectors over a bed depression, color-coded for the surface (red), middle (blue), and near-bed (green) layers.
Simulate complex three-dimensional flow using detailed river-channel topography obtained from multibeam surveys. The iRIC GUI provides bed-elevation contour plots and velocity-vector visualization.

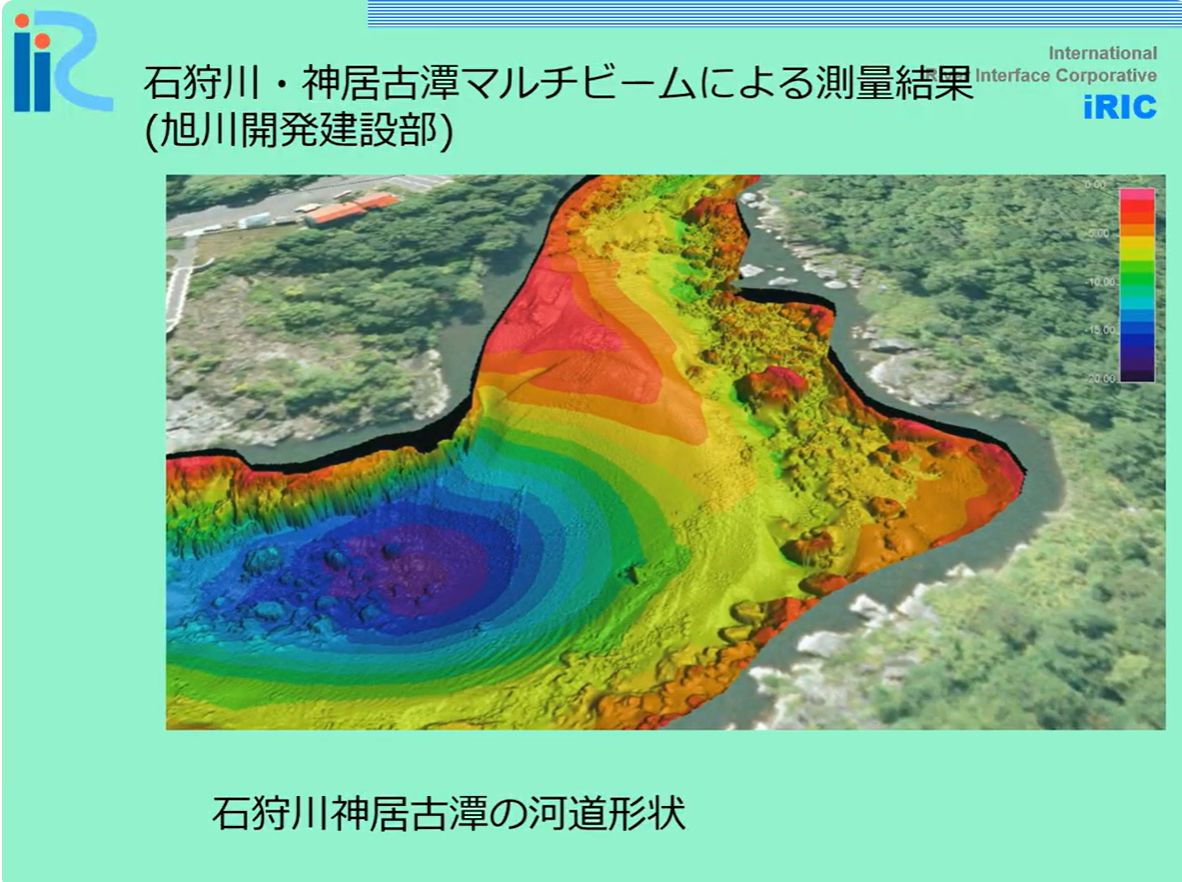

Three-dimensional channel topography from multibeam survey data and simulation results at Kamuikotan on the Ishikari River.
Introductory Video
iRIC V4: 3D Flow Analysis Solver Freebird 3D (YouTube)Trial Version
Trial versions of Cabernet2D and Freebird 3D are available for everyone. Please feel free to contact us for installation guidance, usage instructions, short workshops, demo presentations, or any other inquiries.
Full Version (Gold Members Only)
The full version is available as a benefit for iRIC-UC Gold Members. An online workshop (approximately half a day) is also included in the Gold Member benefits.
The non-hydrostatic model reproduces complex vortex structures within hydraulic jumps downstream of bed protrusions. It supports subcritical, supercritical, and mixed flows, as well as hydraulic jumps, accounting for vertical accelerations that cannot be represented by the hydrostatic approximation.

Three-dimensional flow within a hydraulic jump simulated using the non-hydrostatic model.
Simulate three-dimensional flow at multiple confluences and bifurcations, including right-angle confluences, right-angle bifurcations, and Y-shaped bifurcations. The discharge partitioning ratio can also be displayed in a real-time graph.
| Right-angle confluence | Right-angle bifurcation |
|---|---|
![]() | ![]() |
Density-current simulation is a particular strength of Freebird. It can simulate lock-exchange flows, descending plumes, density currents between obstacles, vortex rings, and other patterns. Real-river applications include saltwater-wedge simulations in the Ishikari River.
| Density-current patterns | Saltwater intrusion in the Ishikari River |
|---|---|
![]() | ![]() |
Visualize complex turbulent structures behind obstacles using vorticity isosurfaces. This feature is available for general turbulent-flow simulations as well as density-current simulations.

The nonlinear k–ε model calculates secondary currents generated by turbulence anisotropy. Secondary-flow vectors can be overlaid on cross-sectional contours of streamwise velocity.

Secondary-current vortices forming in a row above bands of bed roughness, shown as cross-sectional streamwise-velocity contours and secondary-flow vectors.
Place obstacle blocks, walls, and other structures, and simulate flow through openings (culverts) in their faces. Display the structure geometry together with velocity vectors at different elevations.

Structures (black), bed-elevation contours, and velocity vectors at three elevations shown together.
Simulate three-dimensional flow in complex domains containing multiple obstacles and walls. Multiple inflow and outflow boundaries are also supported.
